Bring compatible motor controls into your home’s scenes and schedules, with a relay fitted out of sight.
Tech specsWhat you need
- Wired power and room for the relay, enclosure and cables.
- Output mode and load checked for the exact connected equipment.
- A compatible Zigbee hub and configured control.
A small part of a considered system
Put motorised features
on your schedule.
A compatible curtain, window or other supported motor can become part of the way your home responds. Nova matches the relay mode to the equipment.
Your scene
Choose when an action happens.
The relay
Send the selected command.
Your motor
Operate the compatible equipment.
The motor, connected load and output mode are checked together.

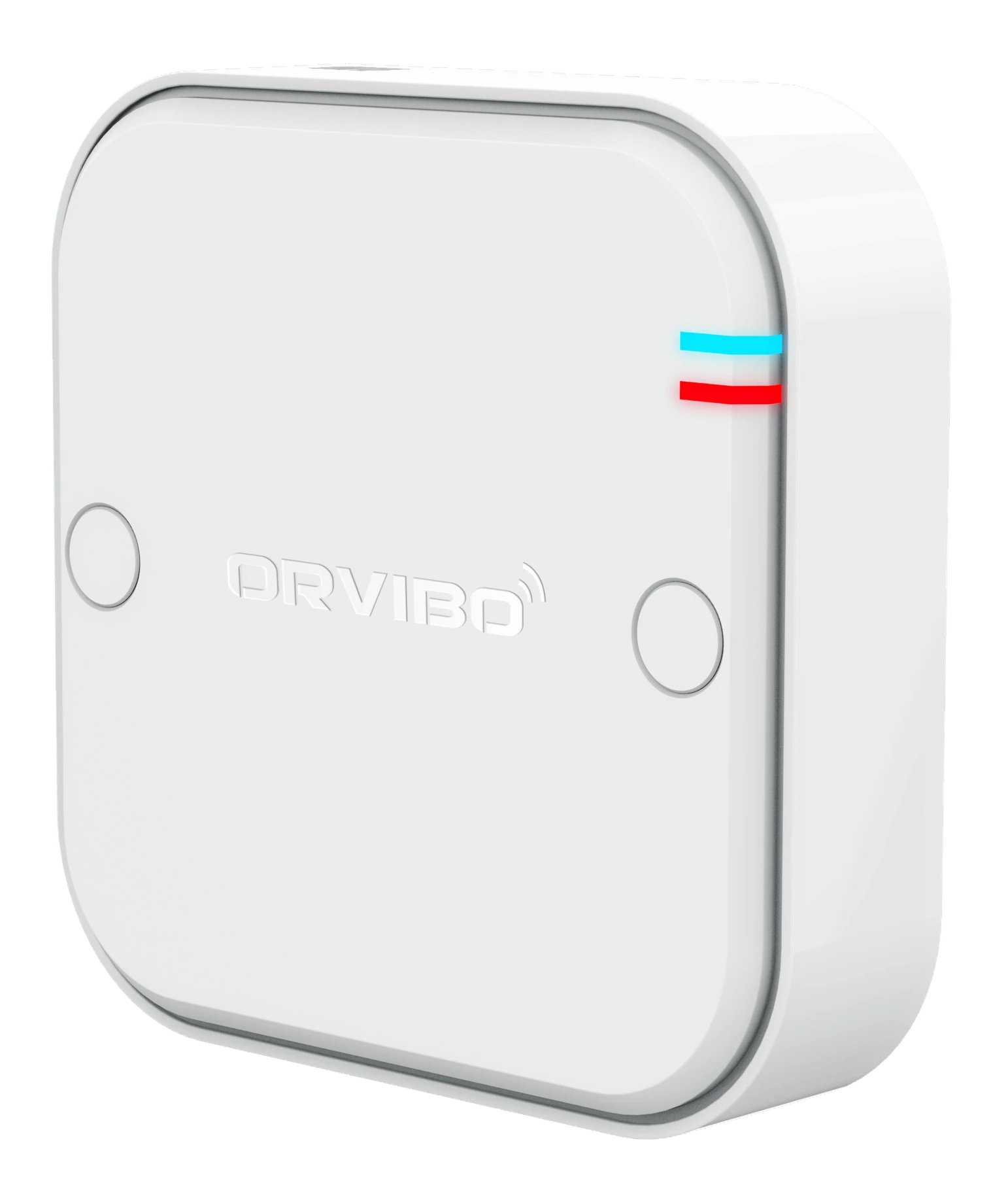

A closer look
A compact link between
your motor and system.
A compact relay connects the motor to the wider system. Its location, enclosure and wiring are planned so the installation stays accessible.
Before installation
Planned for your home
Tell us what you want to control. A motor model and wiring diagram help us choose the right connection.
Installation & compatibility
The supplied CM10ZW is a motor-control relay. Nova checks the connected load, operating mode and wiring before connection, and plans a suitable enclosure with access for maintenance. A compatible Zigbee hub is required.

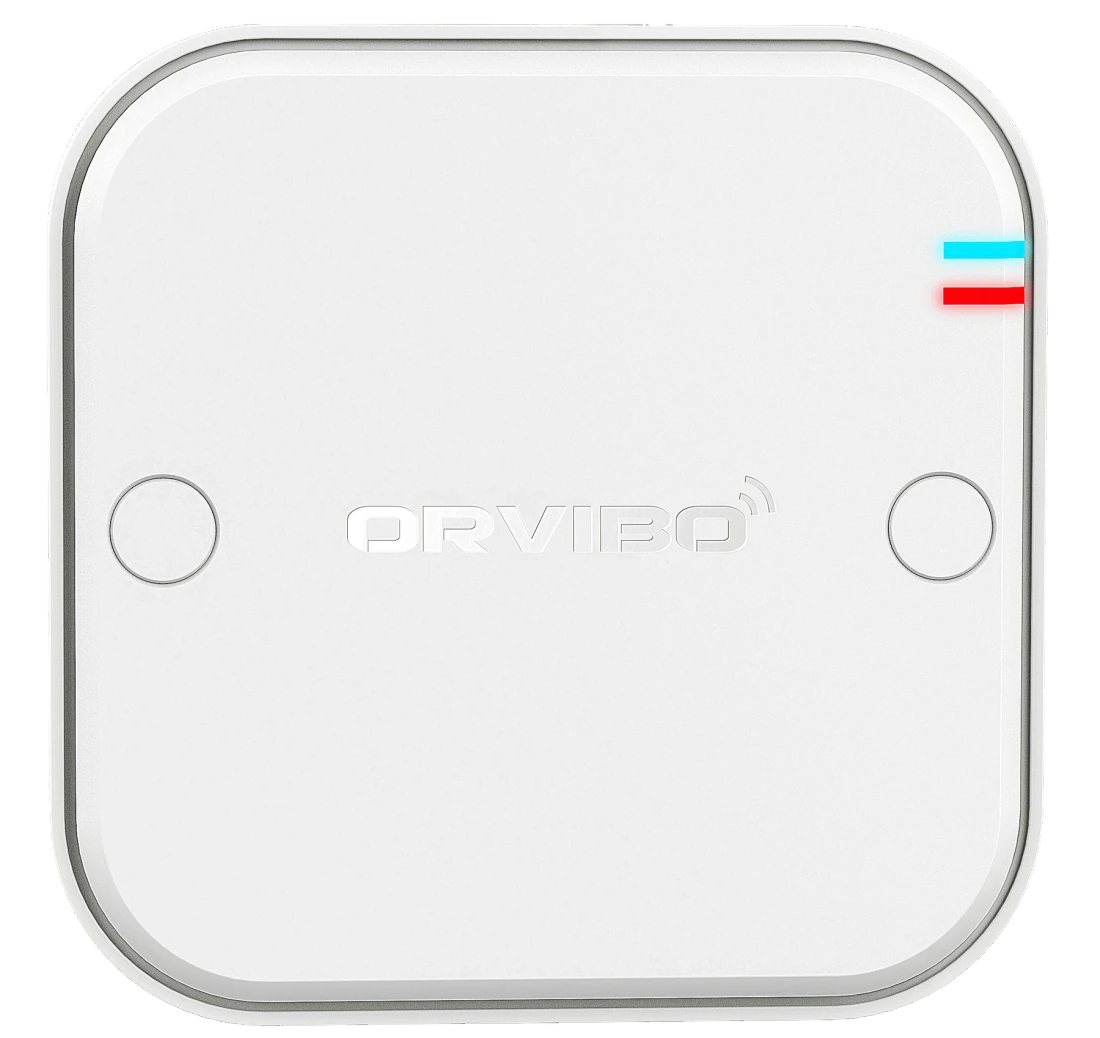

Smart Relay
Technical specifications
Dimensions, connections and installation details.
Model / version
CM10ZW
CM10ZW multi-functional motor relay, matched to the supplied product code. Its ratings are separate from the RGB lighting relay.
Product code- 9.04.02030024
Dimensions and installation
- Product dimensions
- 70 × 70 × 23 mm (length × width × height)
- Mounting space
- Confirm enclosure and cable clearance for the actual installation.
Power and connectivity
- Power supply
- 100–240 V AC · 50–60 Hz
- Maximum current
- 1 A per circuit, for CM10ZW only
- Standby consumption
- <1 W
- Communication
- Zigbee HA · 2.4 GHz
- Gateway
- Compatible Zigbee hub required
- Operating modes
- High-voltage, low-voltage and power-relay modes
Operating conditions
- Operating temperature
- −20–60 °C
- Relative humidity
- ≤80% RH
Product documentation
- ORVIBO · CM10ZW relay specifications (English)
- ORVIBO · CM10ZW in the 2022 product list (English · Scribd · downloads require sign-up)
