A touchscreen and physical buttons. Your room, brought together.
A closer look Tech specsWhat you need
- Live and neutral wiring, plus a suitable wall box; Nova checks the supplied version.
- Compatible devices for the lighting, climate and connected functions you want.
Two ways to feel at home.
Keep your favourites
on a button.
Use the display for supported room settings. Keep everyday lighting or a favourite scene on a physical button.
- 4-inch touchscreen
- A clear view of your room’s controls.
- Physical buttons
- Configured around the lights and scenes you use.
A compact panel
for your room.
A compact wall panel for the everyday controls you want close by.
Planned for your home
Where should your
MixPad go?
Tell us which room you are planning and what you want to control. Nova checks the equipment, wiring and wall position with you.
Installation & compatibility
Before choosing Uses a mains supply with neutral and a single 86 mm wall box. Its two lighting circuits and configurable buttons are matched to the room’s wiring and supported scenes.

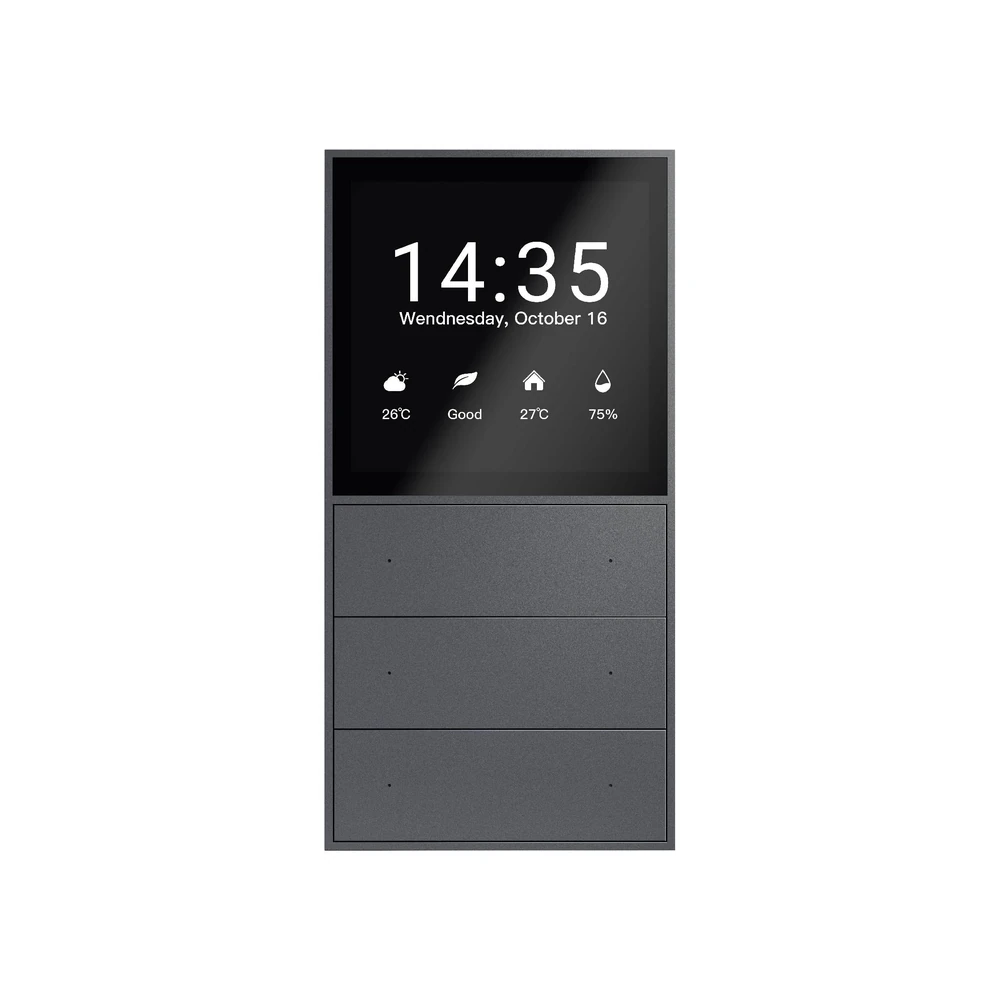

MixPad S
Technical specifications
Dimensions, connections and installation details.
Model / version
V20X
V20X in grey, with live and neutral wiring. Nova confirms recessed depth during installation planning.
Product code- 9.01.01000154
Dimensions & mounting
- Panel width
- 85 mm
- Panel height
- 170 mm
- Recessed depth
- Confirmed during installation planning.
- Mounting box
- Single 86-type wall box
Display & audio
- Touch display
- 4″ · 480 × 480
- Physical buttons
- Configurable lighting and scene functions
- Speaker
- AAC1813
- Microphones
- Dual-microphone array
- Processor
- Quad-core ARM Cortex-A35
- Memory & storage
- 2 GB RAM · 8 GB ROM
Power & lighting
- Electrical supply
- 220 V AC; live and neutral
- Direct lighting outputs
- 2 circuits · up to 200 W per circuit
Connections & environment
- Wireless protocols
- Wi-Fi · Bluetooth · Zigbee 3.0
- Zigbee gateway
- Built in
- Infrared transmitter
- Not built in
- Sensors
- Ambient light, proximity, temperature and humidity
- Operating temperature
- 0–45 °C
- Operating humidity
- ≤ 90% RH
Product documentation
- ORVIBO · MixPad S specifications (English)
- ORVIBO · 2025 catalogue (PDF · Light Up Total)
- ORVIBO · 2022 product list (English · Scribd · downloads require sign-up)
