Two ways to feel in control

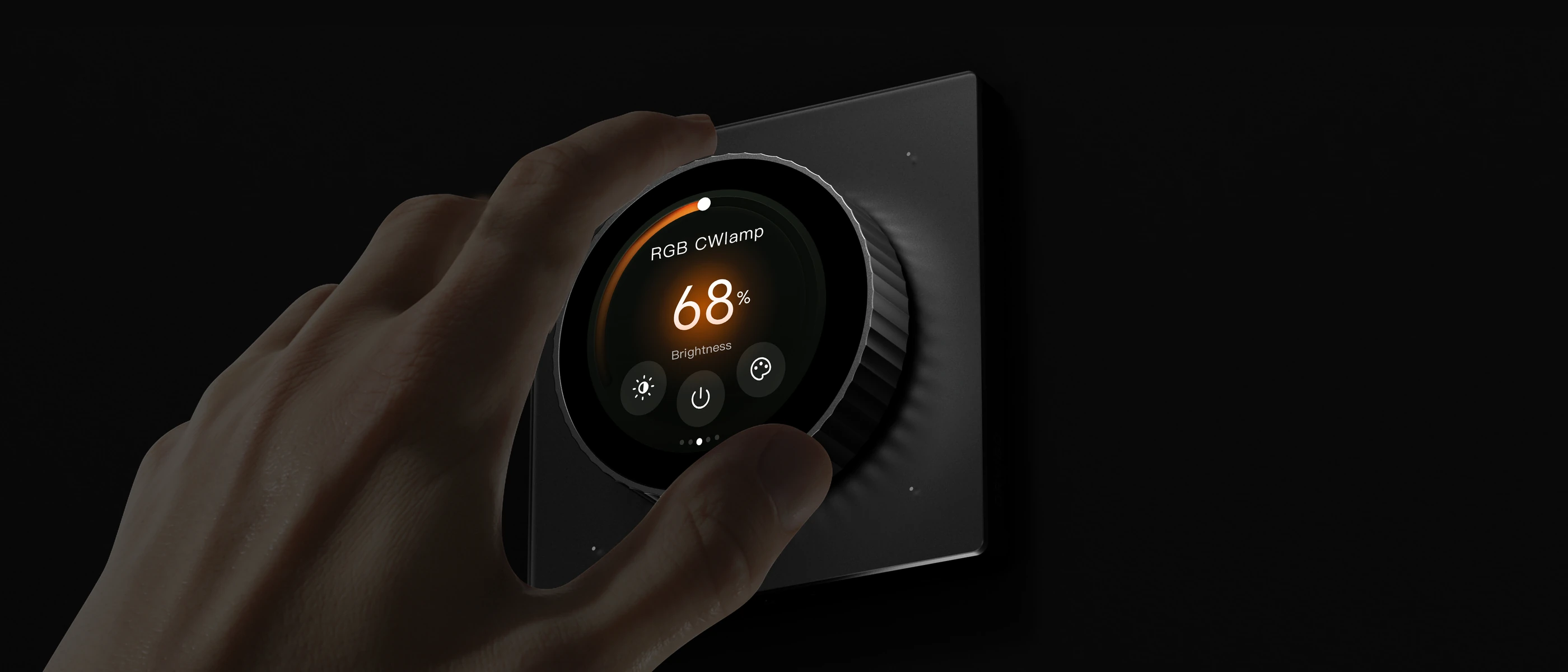

Turn.
The physical dial brings a familiar, tactile movement to everyday adjustments.
Gauss G1
Gauss G1

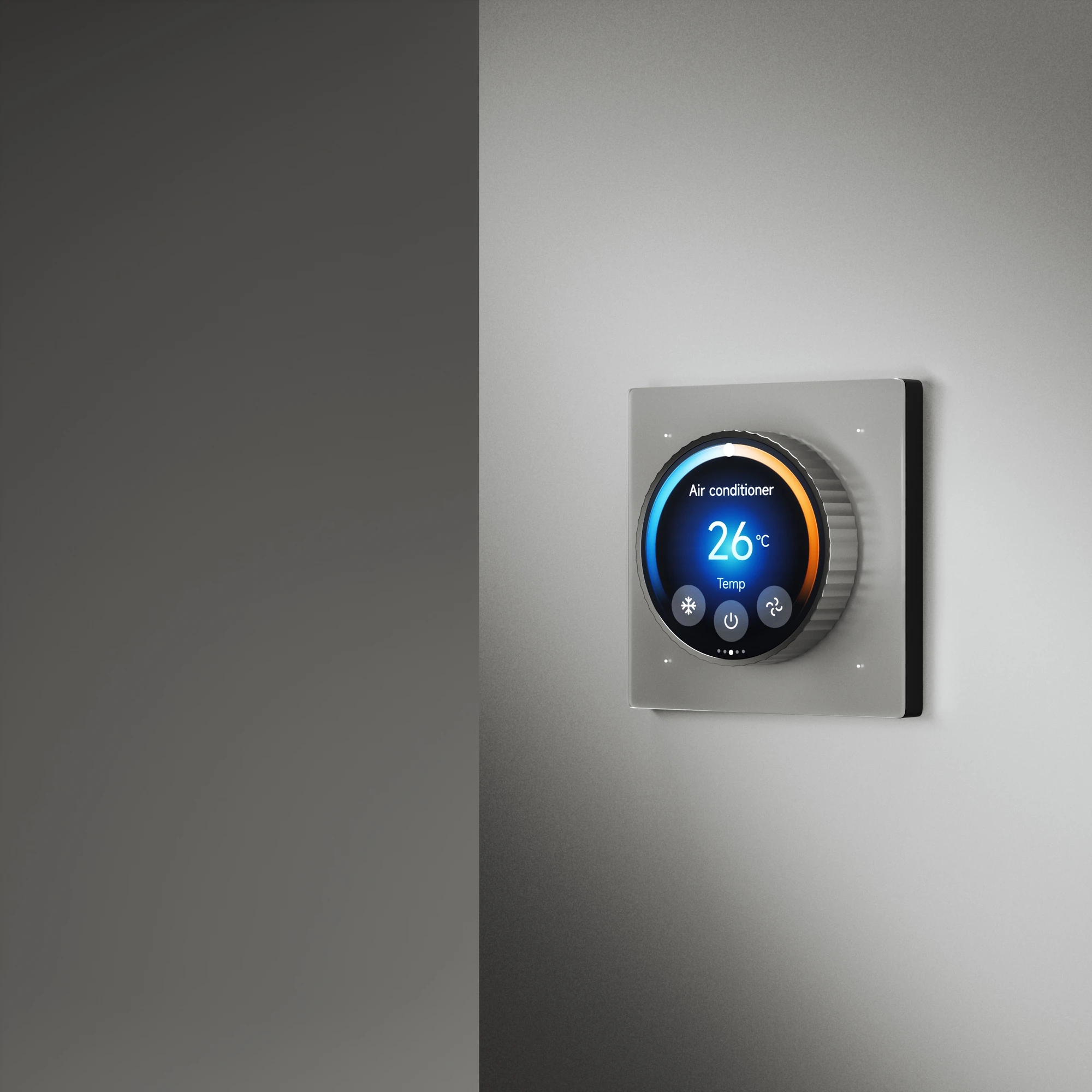

Gauss G1Room control with
a familiar turn.
A physical dial. A touch display. A natural way to adjust supported lighting, climate and curtains.
What you need
- Wired power and enough clearance for the wall box and rotary dial.
- Compatible lighting or heating and cooling interfaces for the functions you want.
At a glance.
A circular touch display puts supported room controls in one place.
Gauss G1
What will you control
with G1?
Choose the controls around the equipment in your home. Nova checks the connected systems and the functions your installation can support.
Explore the systemsLighting
Bring supported lighting controls to the dial and display.
Climate
Adjust compatible climate equipment from your wall control.
Curtains
Include supported curtain controls in your room’s setup.
Available functions depend on the connected products and installation.
Gauss G1
Technical specifications
Dimensions, connections and installation details.
Model / version
GV10
GV10 reference specification. Nova confirms the final model and installation requirements for your project.
Dimensions & mounting
- Housing width × height × depth
- ≈ 86.1 × 86.1 × 38.4 mm
- Mounting clearance
- Nova confirms wall-box depth and clearance around the knob during installation planning.
Display & audio
- Touch display
- 1.8″ IPS
- Controls
- Rotary knob, touchscreen and physical keys
- Speaker
- 1 × 1 W
- Microphones
- Dual-microphone array
- Processor
- RK3326
Power & lighting
- Supply voltage
- 100–240 V AC · 50/60 Hz
- Direct lighting outputs
- 2 circuits
- GV10 reference load rating
- Up to 400 W per circuit; 800 W total. Nova confirms the limits for the supplied model.
Connections & environment
- Wireless protocols
- Wi-Fi · Bluetooth · Zigbee 3.0
- Gateway
- Built in
- Operating temperature
- 0–45 °C
- Operating humidity
- ≤ 90% RH
Product documentation
- ORVIBO · Gauss G1 (Chinese)
- ORVIBO · Smart Home catalogue (English · Manuals+)
Gauss G1
Find the right place for G1.
Tell us which room you are planning and what you want to control. We’ll help you check the equipment, placement and installation requirements.
